What Size Drill Bit For 1/8 Npt Tap
If you’re ready to dive into the world of drilling and tapping but wonder, ‘What size drill bit for 1/8 NPT tap?’, look no further. As the saying goes, ‘measure twice, drill once,’ and we have all the precise details you need to ensure a successful drilling experience.
Selecting the correct drill bit size is crucial when tapping a hole for a 1/8 NPT (National Pipe Taper) tap. The ideal choice is an R drill bit with a diameter of 8.61 mm or 0.339 inches. This ensures a proper fit and prevents any loose drilling mishaps that could lead to potential injuries.
This comprehensive guide thoroughly explores the connection between drill bit size and 1/8 NPT taps. Because precision is vital, you’ll learn to choose the right drill bit size using calipers based on accurate thread diameter measurements.
Additionally, we’ll delve into essential tips such as applying sealant for leak-free seals and lubrication techniques to prevent overheating and reduce friction during drilling.
So grab your tools, heed our expert advice, and prepare for successful tapping with the perfect drill bit size for your 1/8 NPT tap. Let’s get started! (Read Is Spraying Someone With Water Assault)
Understanding the Basics of 1/8″ NPT Taps and Drill Bits
If you’re wondering about the basics of a 1/8′ NPT tap, it’s a threaded tool for creating tapered pipe threads. Choosing the right drill bit size is crucial when using this tap, as it ensures a proper fit and prevents any potential issues. The importance of selecting the correct size can’t be overstated, as it directly affects the quality and functionality of the thread created.
What is a 1/8″ NPT Tap?
A 1/8′ NPT tap is a specialized tool for creating tapered pipe threads with a diameter of approximately 0.405 inches. It is commonly used in hydraulic systems and other applications that require torque generation. Choosing the correct drill bit size is crucial to properly use a 1/8′ NPT tap. The drill bit should have a diameter that matches the desired thread size and pitch, as indicated in the NPT tap chart.
Choosing the right drill bit size ensures accurate threading and prevents issues such as loose fittings or leaks. Now let’s discuss the importance of selecting the right drill bit size for your 1/8′ NPT tap.
The Importance of Choosing the Right Drill Bit Size
Ensure you don’t underestimate the significance of picking the correct diameter for your drill bit when it comes to drilling and tapping operations. Choosing the right drill bit size is crucial for achieving accurate and precise results. The drill bit size determines the diameter of the hole, which must match the tap size for proper threading. An incorrect drill bit size can lead to loose or damaged threads. Therefore, paying attention to the recommended tap drill size is essential, and selecting a corresponding drill bit accordingly.
Now let’s explore the connection between drill bit size and 1/8′ NPT tap.

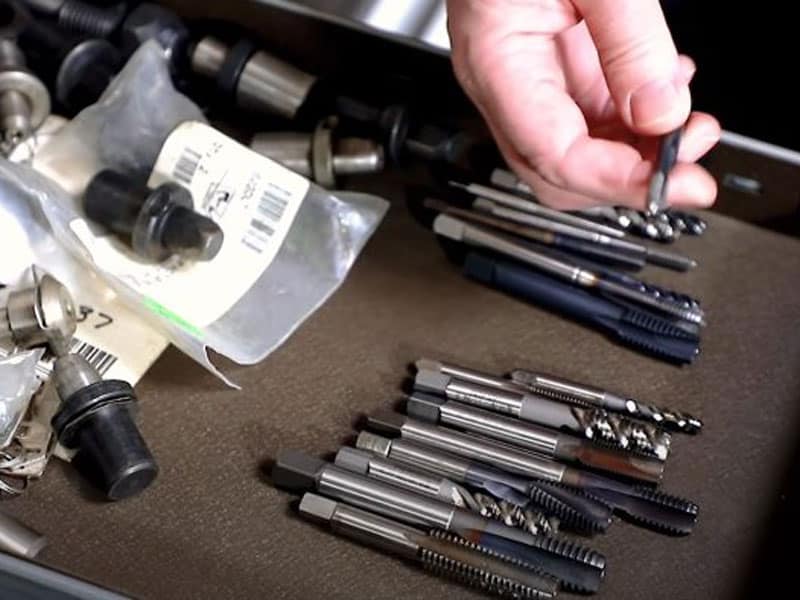

The Connection Between Drill Bit Size and 1/8″ NPT Tap

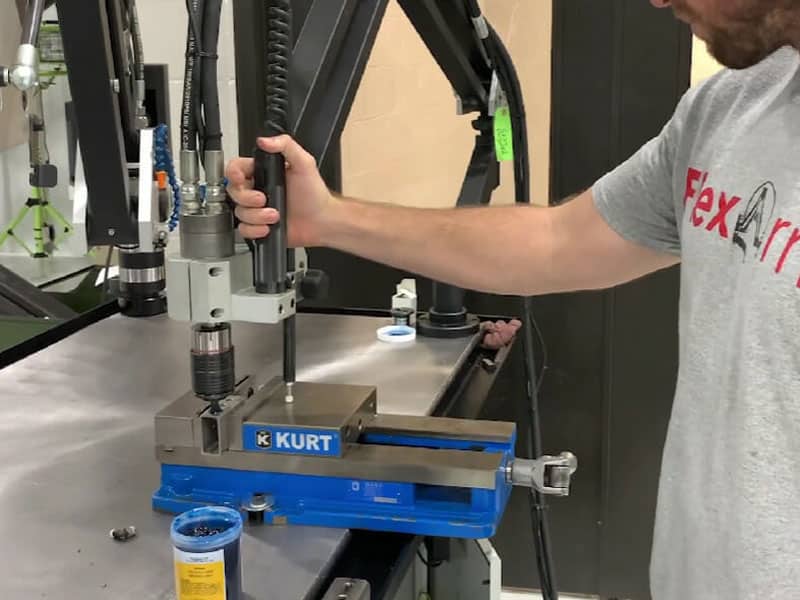

When tapping a hole with a 1/8′ NPT tap, the size of the drill bit you choose is crucial to ensure proper thread engagement. The drill bit creates the initial hole that the tap will follow, and if it’s too small or too large, it can result in damaged threads or loose connections.
Common mistakes when choosing the drill bit size for a 1/8′ NPT tap include using an incorrect conversion chart, relying on guesswork rather than precise measurements, and not considering the specific requirements of NPT threads. It’s important to carefully select the correct drill bit size to ensure successful tapping and secure connections.
How Drill Bit Size Affects Tapping
When it comes to tapping with a drill bit, the size of the drill bit plays a crucial role. The drill bit’s decimal size determines the threads’ accuracy and fit. Using a drill bit that matches the decimal size required for tapping ensures proper thread engagement and reduces the risk of stripped or damaged threads.
Fractional-size drill bits may not provide the necessary precision and can lead to ill-fitting threads, making decimal-size drill bits more suitable for tapping applications.
The Role of Decimal Size in Drill Bits
To ensure accurate drilling for a 1/8 NPT tap, it’s crucial to understand the role of decimal size in drill bits. Here are four key points to consider:
- Drill bit sizes are often specified in decimal inches or millimeters. The decimal size indicates the diameter of the drill bit.
- Referring to a drill chart can help determine the appropriate drill size for a specific NPT tap thread size.
- Correctly matching the tapping drill size with the thread size is essential for achieving precise and secure connections.
Now let’s discuss fractional size vs. decimal size drill bits.
Fractional Size Vs. Decimal Size Drill Bits
The difference between fractional size and decimal size drill bits is like night and day in terms of accuracy and precision. When finding the right drill bit size for a 1/8 NPT tap, understanding the distinction between fractional and decimal sizes is crucial.
While fractional sizes are expressed as fractions (1/8 or 3/16), decimal dimensions are represented by their equivalent decimal measurements (such as 0.125 or 0.188).
Now let’s discuss common mistakes when choosing the drill bit size for a 1/8 NPT tap. (Read Can I Use 3 Inch Nails For Framing)

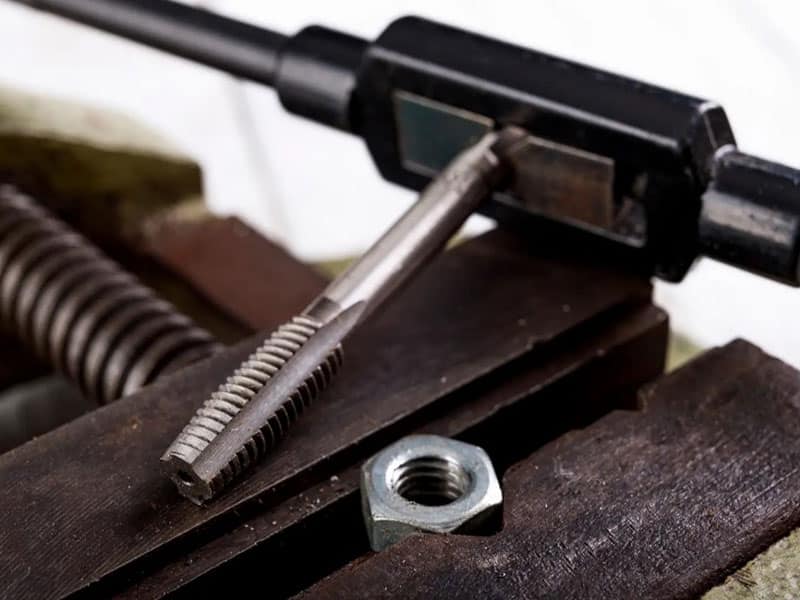

Common Mistakes When Choosing Drill Bit Size for 1/8″ NPT Tap
Avoiding common mistakes is essential when choosing a drill bit size for a 1/8′ NPT tap.
First, don’t overlook the thread size and assume any drill bit will work. Select a drill bit specifically designed for the 1/8′ NPT thread size.
Second, don’t ignore the pipe thread tap itself. The tap has specific hole diameter and depth requirements that must be considered when choosing the drill bit size.
Taking these factors into account will ensure a successful tapping process.
Overlooking the Thread Size
Overlooking the thread size can lead to using the wrong drill bit for a 1/8 NPT tap, resulting in improper threading and potential leaks.
Selecting the correct size drill bit is crucial to ensure the proper hole diameter for threading. The recommended drill bit diameter for a 1/8 NPT tap is approximately 8.61 mm or 0.339 inches. This ensures that the pipe threads will fit securely into the drilled hole. Ignoring the pipe thread tap can further compromise the integrity of the threaded connection.
Ignoring the Pipe Thread Tap
Don’t be fooled into thinking that disregarding the importance of the pipe thread tap won’t come back to haunt you during your drilling and threading process. Ignoring the pipe thread tap can lead to a poorly fitted connection and potential leakage.
To ensure success, consider these three key factors:
- The taper of NPT threads, allows for torque generation.
- Using the correct fitting for NPT threads.
- Select the appropriate drill bit size for an inch-based measurement like 1/8 NPT.
Now let’s dive into a comprehensive guide to choosing the right drill bit size for a 1/8 NPT tap. (Read No Slam Door Hinge)
A Comprehensive Guide to Choosing the Right Drill Bit Size for 1/8″ NPT Tap
When choosing the right drill bit size for a 1/8′ NPT tap, several factors must be consideredThis comprehensive guide provide a step-by-step process for selecting the correct size drill bit. We’ll also share expert tips and techniques for tapping with a 1/8′ NPT tap to ensure successful results.
Step-by-Step Guide to Selecting the Right Drill Bit Size
To select the correct drill bit size for a 1/8 NPT tap, you need to understand the drill chart and how to use the tap drill size.
The drill chart provides the recommended drill bit sizes for tapping different threads. To use the tap drill size, you’ll need to identify the correct diameter of the hole that needs to be drilled before tapping.
By following these guidelines, you can ensure that you choose the appropriate drill bit size for your 1/8 NPT tap drilling project.
Understanding the Drill Chart
Take a closer look at the drill chart to understand the recommended drill bit sizes for different NPT taps. The drill chart provides valuable information about the drill bit size that should be used for each specific NPT tapIt helps you find the correct drill bit size for your 1/8 NPT tap, ensuring precise and accurate drilling. Understanding the drill chart is essential in selecting the appropriate drill bit size for your needs.
Now let’s move on to effectively using the tap drill size.
How to Use the Tap Drill Size
Let’s utilize the recommended drill bit size for your 1/8 NPT tap. The drill bit size is crucial to ensure a proper fit and seal for the tapered nature of NPT pipe threads. Using the correct tap drill size, you can create precise holes that will accommodate the connection and sealing of your NPT tap.
Now, let’s move on to some expert tips for tapping with a 1/8 NPT tap.
Expert Tips for Tapping with 1/8″ NPT Tap
When dealing with an oil galley, it’s crucial to ensure a leak-free fit using proper tapping techniques. Select the correct drill bit size for your 1/8′ NPT tap to achieve this.
Next, apply sealant to the threads to create a tight seal and prevent leakage.
Finally, use a tap wrench and apply even pressure while cutting the threads to ensure a secure and durable connection.
Dealing with Oil Galley
Dealing with the intricate oil galley can be as delicate as navigating a maze filled with booby traps. To successfully tap into the oil galley, you’ll need to consider the drill bit size for your NPT tap. Here are four key points to keep in mind:
- Use a decimal-size drill bit that matches the recommended drill size for your NPT tap.
- Ensure that the oil galley’s female connection is clean and debris-free.
- Take extra caution when working with high-pressure systems to prevent leaks or damage.
- Follow proper drilling techniques to maintain accuracy and prevent any mishaps.
By taking these steps, you can ensure a leak-free fit with proper tapping in the subsequent section about ensuring a leak-free fit with right tapping. (Learn How Long Does Mortar Take To Dry)

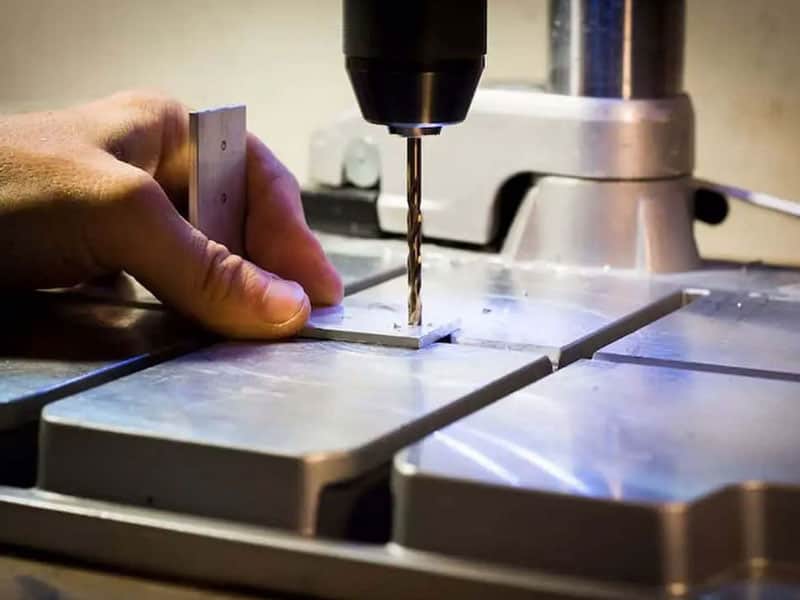

Ensuring a Leak-Free Fit with Proper Tapping
Tapping the oil galley using proper techniques and precision is crucial to achieve a secure and leak-free connection. The tapered nature of NPT threads ensures effective sealing and generates torque for a tight fit. When tapping, use the correct drill bit size for your 1/8 NPT tap.
This will ensure the threads are correctly cut and aligned, resulting in a successful tapping process with the correct drill bit size for 1/8 NPT tap.
Conclusion: Ensuring Successful Tapping with the Right Drill Bit Size for 1/8″ NPT Tap
Use the correct drill bit size to ensure successful tapping with a 1/8′ NPT tap. The right drill bit size is an R drill bit measuring 0.339 inches or 8.61 mm in diameter. Using the wrong drill bit size can result in loose drilling and potential injuries. Selecting the right size for a secure and precise fit is crucial.
Here are some steps to follow:
- Choose the appropriate drill bit size for your 1/8′ NPT tap.
- Use lubrication to prevent overheating and reduce friction during drilling.
- Clear out chips and debris periodically to keep the hole clean.
Conclusion
Now that you understand the importance of using the correct drill bit size for a 1/8 NPT tap, you’re well-equipped to ensure successful tapping. By measuring and selecting the correct drill bit diameter, you can guarantee a secure, leak-free connection. Use sealant and lubrication during drilling to prevent overheating and minimize friction. Following these techniques will result in proficient drilling and tapping, optimizing performance for your hydraulic systems.
