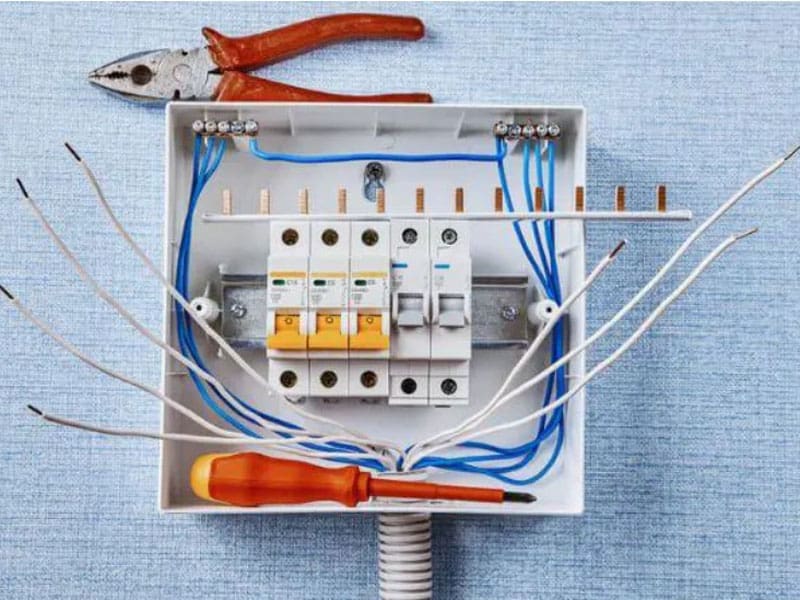

Can I Use 12 Gauge Wire On A 15 Amp Circuit
In the realm of electrical installations, knowing how to properly select and use the right gauge of wire for a 15-amp circuit is essential. This article will guide you through this technical topic, ensuring you have the correct information to safely and effectively carry out your wiring tasks. Worth a read because it covers essential wire selection details, from wire gauge importance to specific 14-gauge and 12-gauge wire usage scenarios for a 15-amp circuit breaker.
Understanding Wire and Circuit Breaker Basics
A wire is a conductor that allows electricity to flow from one point to another. The “gauge” of a wire refers to its diameter, with the wire gauge system being inversely proportional: the larger the gauge number, the thinner the wire. Conversely, a smaller gauge number signifies a thicker wire. For instance, a 12-gauge wire is thicker than a 14-gauge wire.
On the other hand, a circuit breaker is a safety device installed in an electrical panel. It is designed to protect the circuit from overloads or short circuits by tripping and interrupting the electrical flow when the current exceeds its rating. (Learn How Long Do Pex Pipes Last)
What is a 15 Amp Circuit and When Do You Need It?
A 15-amp circuit is typically installed to power light fixtures and small appliances around the home. “15 amp” refers to the maximum current the circuit breaker can handle before it trips to protect the circuit.
It’s important to check your breaker box to understand the rating of your circuits. You’ll typically need a 15-amp circuit breaker for outlets and lighting wirings in residential applications, but heavier appliances may require a 20-amp circuit.
How to Choose the Correct Wire Size for a 15 Amp Circuit?
Choosing the correct wire size is crucial to ensure the safety and efficiency of your electrical system. For a 15-amp circuit, the National Electrical Code (NEC) typically recommends using a 14-gauge copper wire.
However, you might need to use a 12-gauge wire if the wire run is exceptionally long to prevent voltage drop. A voltage drop occurs when the electrical current loses strength as it moves along the wire, which can affect the performance of your electrical devices.
What is Wire Gauge and Why is it Important?
Wire gauge, technically known as American Wire Gauge (AWG), is a standardized wire gauge system used predominantly in North America to denote the diameter of round, solid, nonferrous, electrically conducting wire. The higher the gauge number, the thinner the wire; the lower the gauge number, the thicker the wire.
Wire gauge is important because it determines the amount of electrical current a wire can safely carry without overheating and potentially causing a fire. Always consult the NEC for safe wire gauge selection and installation practices. (Learn How To Fix Stripped Screw Holes In Metal)
Can You Use 14-Gauge Wire on a 15 Amp Circuit?
Yes, you can use a 14-gauge wire on a 15-amp circuit. The NEC recommends this minimum wire size for a 15-amp breaker. It can handle a maximum current of 15 amps and is commonly used for lighting circuits and outlets in most residential settings.
Remember, though, that if you’re planning to run the wire for more than 70 feet or supply power to heavy-duty power tools, you may need to upgrade to a 12-gauge wire to prevent voltage drop and overheating.
Why Should You Use 12 Gauge Wire on a 15 Amp Circuit?
A 12-gauge wire is thicker and can carry more current than a 14-gauge wire without overheating. It is suitable for a 15-amp circuit breaker, especially when the wire run is long or when powering high-demand appliances or tools.
The 12-gauge wire is safe to use on a 15-amp circuit and provides additional protection against potential overloads. While it may not be necessary in all installations, it’s a good choice for those wanting extra safety and efficiency.
When is it Suitable to Use a 15 Amp Wire Size?
A 15 amp wire size typically refers to a 14-gauge wire, which is suitable for most residential lighting and outlet circuits. However, wire size should be determined based on the total load of the devices the wire will serve, the length of the wire run, and the type of wire insulation used.
In any case, it’s critical to ensure that the wire size matches the amp rating of the circuit breaker. For example, a 14-gauge wire should only be used with a 15-amp circuit breaker.
How Far Can You Run 12 Gauge Wire on a 15 Amp Circuit?
Generally, you can run a 12-gauge wire up to 100 feet on a 15-amp circuit without worrying about voltage drop. However, if the load is near the maximum 15 amps, you may need to limit the run to 50 feet or less. Consider using a thicker wire or splitting the load onto multiple circuits for longer runs or higher loads.
What Happens if You Use an Incorrect Wire Size?
Using an incorrect wire size can lead to a host of issues. For instance, if a wire gauge is too thin for its load, it can overheat, damaging the wire insulation and posing a serious fire risk. Moreover, an overloaded wire can cause a circuit breaker to trip frequently. (Read Small Round Holes In Yard)

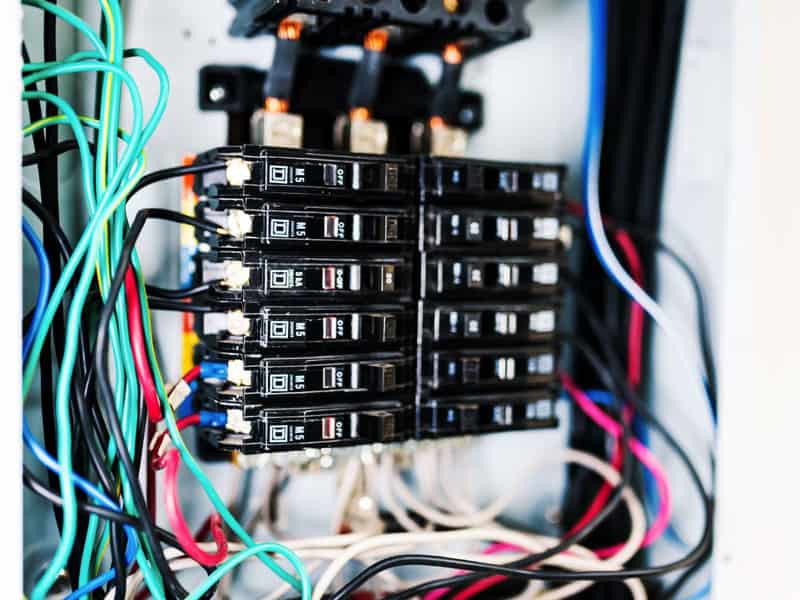

Conclusion: Selecting the Proper Wire for Your 15 Amp Circuit
When working with a 15-amp circuit:
- Understand the basics of wires and circuit breakers
- Know when to use a 15-amp circuit
- Choose the correct wire size for safety and efficiency
- Recognize the importance of wire gauge
- Know when to use 14-gauge and 12-gauge wires
- Understand the suitability of a 15-amp wire size
- Determine how far you can run a 12-gauge wire
- Be aware of the implications of using the wrong wire size
Remember, proper wire selection is crucial for your electrical circuits’ safe and efficient operation. Always abide by the National Electrical Code and seek professional help if unsure.
FAQs
Q: What is a 15 amp breaker?
A: A 15 amp breaker is a circuit breaker that can handle a maximum of 15 amps of current flowing through it.
Q: What is 14 gauge wire?
A: 14 gauge wire is an electrical wire that is commonly used for general electrical wirings, such as wiring for lighting and small appliances.
Q: What size wire do I need for a 15 amp circuit?
A: You must use 14 gauge wire for a 15 amp circuit.
Q: Can I use 14 gauge wire on a 15 amp breaker?
A: You can use 14 gauge wire on a 15 amp breaker. The wire’s ampacity exceeds the 15 amp requirement.
Q: Can I use a 12-gauge wire on a 15-amp circuit?
A: Yes, you can use 12-gauge wire on a 15 amp circuit. However, it is not recommended because the circuit breaker will trip at 15 amps, and the wire’s ampacity exceeds the 15 amp requirement. (Read What Is Topsoil Made Of)
Q: I need to power an outlet with a 15 amp breaker; what gauge wire do I need?
A: You’ll need to use 14 gauge wire for outlets powered by a 15 amp breaker.
Q: Can I use a 20 amp circuit breaker with a 14 gauge wire?
A: No, you cannot use a 20 amp circuit breaker with 14 gauge wire because the wire’s ampacity is not sufficient to handle a 20 amp load.
Q: How do I determine how many outlets I can put on a 15-amp circuit?
A: You can determine how many outlets you can put on a 15 amp circuit by dividing the total amperage of the circuit (15 amps) by the amperage requirement of each outlet (typically 1.5-2.0 amps). This will give you the maximum number of outlets you can put on the circuit.
Q: Will a 14 gauge wire handle 20 amps?
A: No, a 14 gauge wire will not handle 20 amps. It is not recommended to exceed the ampacity of the wire.
Q: What is the importance of the correct wire size for electrical wiring?
A: Using the correct wire size is crucial in electrical wiring as it ensures that the wire can safely carry the current without overheating and causing a fire hazard. Additionally, having the right wire size ensures the flexibility in using it as per the requirements.
